Brief summary of common casting methods.

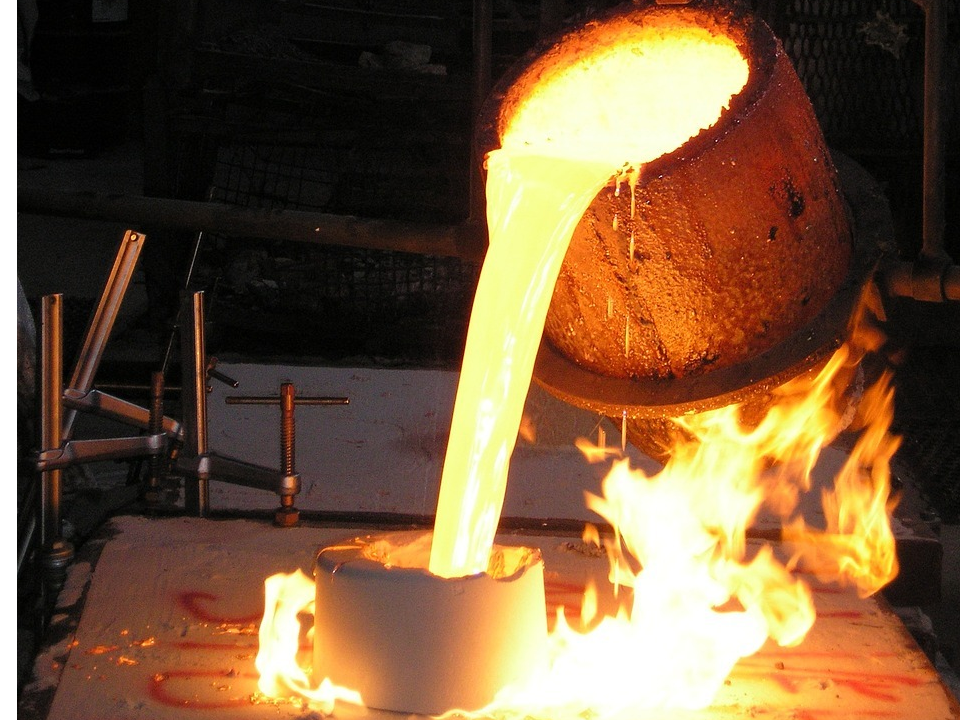

A casting process involves pouring molten metal into a mold, letting the metal cool and solidify, and removing the part from the mold. Today, engineers from Raymond Machinery Co.,Ltd would like to take some to make a brief summary for several common casting methods for your reference.

1. Precision Casting (Investment Casting)

• Process: Involves creating a wax or metal pattern, coating it with a ceramic shell, and then melting out the pattern to create a mold.
• Precision: High dimensional accuracy and excellent surface finish, often requiring little to no machining.
• Complexity: Capable of producing intricate shapes and thin-walled sections.
• Materials: Suitable for a wide range of metals, including ferrous and non-ferrous alloys.
• Applications: Used in aerospace, medical devices, and precision machinery.

2. Sand Casting

• Process: Involves creating a mold from sand mixed with a binder. The molten metal is poured into the sand mold.
• Precision: Lower dimensional accuracy compared to precision casting; surface finish is also rougher.
• Complexity: Can produce simple to moderately complex shapes but may struggle with intricate details.
• Materials: Commonly used for ferrous and non-ferrous metals.
• Applications: Widely used in automotive and heavy machinery industries.

3. Die Casting

• Process: Involves forcing molten metal into a mold cavity under high pressure. The mold is typically made from steel.
• Precision: High precision and smooth surface finish, but generally less than precision casting.
• Complexity: Good for producing complex shapes, but limitations on the thickness of sections.
• Materials: Primarily used for non-ferrous metals, like aluminum and zinc.
• Applications: Common in consumer products, automotive parts, and electronics.

4. Permanent Mold Casting

• Process: Uses reusable metal molds to pour in molten metal, allowing for better heat transfer and faster cooling.
• Precision: Moderate precision and surface finish; less than investment casting but better than sand casting.
• Complexity: Good for producing geometrically simple to moderately complex shapes.
• Materials: Typically used with non-ferrous metals.
• Applications: Used in industries like automotive and general manufacturing.

5. Shell Casting

• Process: Similar to precision casting, but uses a thin shell made from sand and resin instead of a ceramic shell.
• Precision: Offers better surface finish than sand casting but not as precise as investment casting.
• Complexity: Capable of producing moderately complex shapes.

  Summary

  Precision Casting: Highest accuracy and detail; used for critical applications.

  Sand Casting: Versatile and economical; good for larger parts with lower precision.

  Die Casting: Fast production of high-volume parts; good for non-ferrous metals.

  Permanent Mold Casting: Reusable molds for moderate production runs; good for non-ferrous metals.

  Shell Casting: Intermediate in precision and complexity; suitable for various applications.

  Each method has its own advantages and is chosen based on specific requirements such as part size, complexity, material, and production volume.
